1-Way Mobile Dock
Standard Separable Type
This is identical to assembled type when assembled, and the inclined part has a separable structure to maximize space utilization. All mobile dock models can be selected for separable type, which allows for freely separating form forklifts for easy assembly, storage, and transportation.
Refer to separable mobile dock's characteristics
Mobile Type
Separable assembled Type

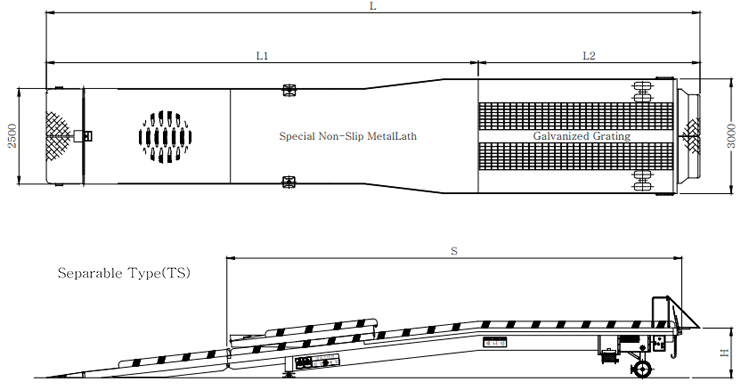

Appearance drawings
SPEC
Model Select Factor| CRITERIA / MODEL | UNIT | 73-TS | 82-TS | 83-TS | 92-TS | 93-TS | 102-TS | 103-TS | 113-TS | 123-TS |
|---|---|---|---|---|---|---|---|---|---|---|
| Width(W) | m | 2.7(2.04) | 2.7(2.04) | 2.7(2.04) | 2.7(2.04) | 2.7(2.04) | 2.7(2.04) | 2.7(2.04) | 2.7(2.04) | 2.7(2.04) |
| Length(L) | m | 11.1 | 11.1 | 12.1 | 12.1 | 13.1 | 13.1 | 14.1 | 15.1 | 16.1 |
| Climb(L1) | m | 7.3 | 8.3 | 8.3 | 9.3 | 9.3 | 10.3 | 10.3 | 11.3 | 12.3 |
| Flat(L2) | m | 3.8 | 2.8 | 3.8 | 2.8 | 3.8 | 2.8 | 3.8 | 3.8 | 3.8 |
| Climb Angle | degree | 9.0~11.0 | 8.0~10.2 | 8.0~10.2 | 7.0~9.0 | 7.0~9.0 | 5.8~7.8 | 5.8~7.8 | 4.7~6.6 | 3.7~5.7 |
| Storage Statement | m | 5.8 x 2.7 | 5.8 x 2.7 | 6.8 x 2.7 | 6.8 x 2.7 | 7.8 x 2.7 | 7.8 x 2.7 | 8.8 x 2.7 | 9.8 x 2.7 | 10.8 x 2.7 |
| Net Weight | kg | 3300 | 3300 | 3600 | 3600 | 3900 | 3900 | 4200 | 4600 | 5000 |
| Capacity | kg | 13000~15000 | ||||||||
| Adjusting Height(H) | mm | 1250~1750 | ||||||||
| Height Operating System | Manual landing gear System (Option : Auto System) | |||||||||
| Tire Shape | ￠420 x 150wSolid Tire (Attached wheel stopping tool) | |||||||||
| Sub Support | Gaksan M50 x 330L Screw | |||||||||
| Body Material | SS400 | |||||||||
| Slope Road Material | Special Non-slip Metallas | |||||||||
| Flat Plate Material | Processing Punching Non-Slip Galvanized Grating + CH.PL | |||||||||
| LIP Material | Galvanized CH.PL | |||||||||
| Stepping Material | Galvanized CH.PL | |||||||||
| Bumper | Preventing vehicle friction Bumper 2Set attached | |||||||||
| Tool Box | Tool Box Installation and Provision tools required | |||||||||
| Paint | Epoxy / Urethane Painting (other colors) | |||||||||
- MODEL Select : Select considering work environment (Capacity and load capacity of forklift, work site, product feature, safety, convenience)
- The above dimensions are standard specifications for typical tasks, and additional specifications can be custom-ordered according to tasks to be performed on-site.
- The above dimensions can be changed without prior notice due to various reasons such as product quality improvement, etc.
